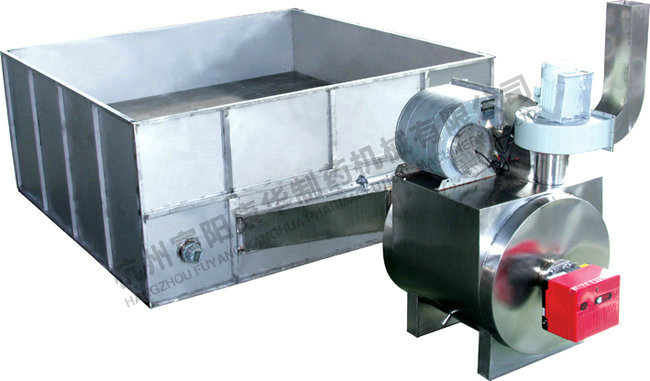

HX open type dryer
Product Video
Detail
Main uses:
This machine is suitable for drying raw materials such as roots, stems, and leaves, semi-finished products, finished products, aquatic products and subsidiary agricultural products.
Features:
Simple operation, good sanitary condition, easy cleaning and maintenance, wide range of application. Multiple heating types (fuel oil, gas, electrical heating, steam heating). It meets the requirement of GMP.
Main technical parameters:
Model |
Capacity (kg/h) |
Drying area (㎡) |
Operating temperature (℃) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
Energy consumption |
HX-4 |
80-150 |
4 |
120 |
2.6 |
4600x2000x1500 |
280 |
Oil consumption 8.0 kg/h |
HX-4 |
80-150 |
4 |
120 |
2.6 |
4600x2000x1500 |
280 |
Gas consumption (liquefied gas)2.0kg/h |
HX-4 |
80-150 |
4 |
120 |
49.1 |
4500x2000x1030 |
580 |
Power consumption 48kw/h |
HX-4 |
80-150 |
4 |
120 |
1.1 |
4500x2000x1200 |
478 |
Steam consumption (steam)80 kg/h |
HX-4 |
80-150 |
4 |
120 |
2.2 |
4500x2000x1930 |
580 |
Coal consumption 15-20kg/h |
