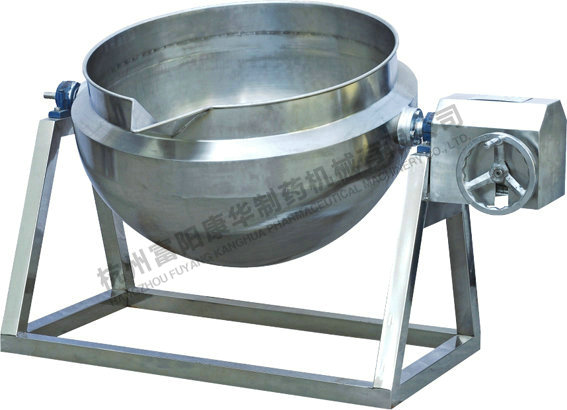

LM roasting machine
Product Video
Detail
Main uses:
The machine is capable for steaming, boiling, stewing, blanching, stir-frying, extracting and concentrating the herbal medicines. It is also suitable for brewing and disinfection in food and chemical industries.
Features:
It has advantages of convenient installation, tiltable body, pollution-free. Taking steam or electrical heating as heat source, the temperature can be controlled easily.It meets the requirement of GMP.
Main technical parameters:
|
Model |
Cubage of the boiler (L) |
Diameter of boiler (mm) |
Working temperature (℃) |
Working pressure (MPa) |
Area of heat exchange (㎡) |
Dimension (mm) |
Weight (Kg) |
Electrical heating power (kw) |
|
LM-600 |
130 |
700 |
Normal temperature～120℃ 120℃
|
Normal pressure |
1.5 |
1310×930×820 |
100 |
24 |
|
LM-800 |
250 |
800 |
1.9 |
1420×1110×880 |
150 |
24 |
||
|
LM-1000 |
500 |
1000 |
2.4 |
1530×1200×940 |
240 |
24 |
