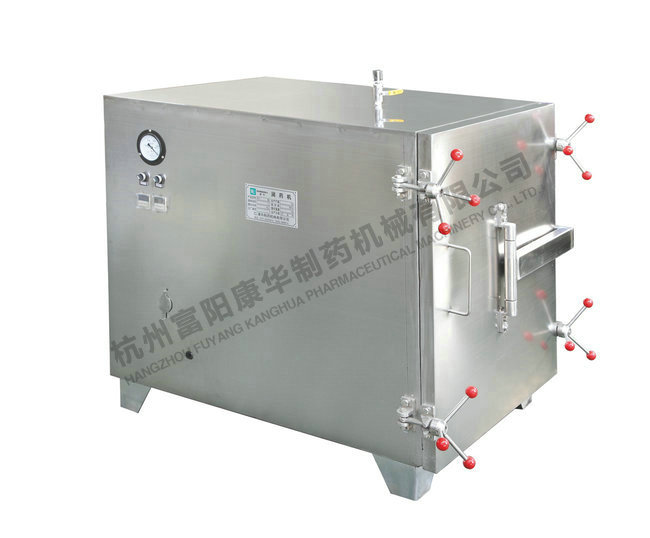

RY herbal medicine infiltrating machine (square)
Product Video
Detail
Main uses:
This machine is used in softening Chinese herbal medicines and agricultural products rapidly and uniformly.
Features:
Adopting new leakproof structure and quick-opening structure. Effective volume of square container is as high as 100%. It meets the requirement of GMP.
Main technical parameters
|
Model |
Cubage (L) |
Vacuum (Mpa) |
Vapor pressure (Mpa) |
Time control range (min) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
|
RY-500 |
500 |
≤-0.09 |
Normal pressure |
0-99 |
1.5 |
1320×1000×1280 |
550 |
|
RY-1000 |
1000 |
≤-0.09 |
Normal pressure |
0-99 |
1.5 |
1820×1200×1280 |
800 |
|
RY-2000 |
2000 |
≤-0.09 |
Normal pressure |
0-99 |
1.5 |
2450×1350×1600 |
1400 |
|
RY-3000 |
3000 |
≤-0.09 |
Normal pressure |
0-99 |
3 |
2700×1450×1700 |
1600 |
