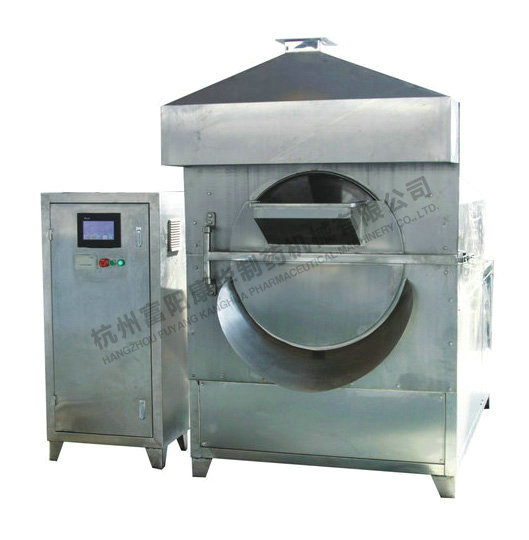

CY CNC medicine-parching machine (electromagnetic heating)
Product Video
Detail
Main uses:
The product is widely used in Chinese herbal medicine health care product factory, decoction piece factory, hospitcal, and food industry for frying and processing traditional Chinese medicinal materials and subsidiary agricultural products of various specifications and properties.
Features:
Stable mechanical performance, compact structure, attractive appearance, easy to use, energy saving, bright and uniform color. It is ideal product for frying and processing. It can meet the requirement of GMP.
Main technical parameters:
|
Model
|
Capacity (kg/h) |
Size of inner tube (mm) |
Power (kw) |
Energy consumption |
Dimension (mm) |
Ways of speed regulation
|
Weight (kg) |
||
|
CY-500 |
15-60 |
Φ500 |
2.2 |
Coal consumption 5kg |
Oil consumption 5kg |
Steam consumption 2kg |
1820×800×1550 |
Electromagnetic stepless speed regulation Electromagnetic stepless speed regulation |
500 |
|
CY-500 |
15-70 |
Φ500 |
21.1 |
Electricity consumption 14kw |
1930×1050×1770 |
500 |
|||
|
CY-700 |
20- 100 |
Φ700 |
2.5 |
Coal consumption 15kg |
Oil consumption 8kg |
Steam consumption 3kg |
2060×1200×1910 |
750 |
|
|
CY-700 |
20- 120 |
Φ700 |
31.5 |
Electricity consumption 21kw |
2100×1200×2000 |
560 |
|||
|
CY-900 |
35- 150 |
Φ900 |
3.3 |
Coal consumption 20kw |
Oil consumption 9kg |
Steam consumption 5kg |
2180×1210×1930 |
950 |
|
|
CY-900 |
35-160 |
Φ900 |
42.2 |
Electricity consumption 30kw |
2200×1400×2000 |
750 |
|||
